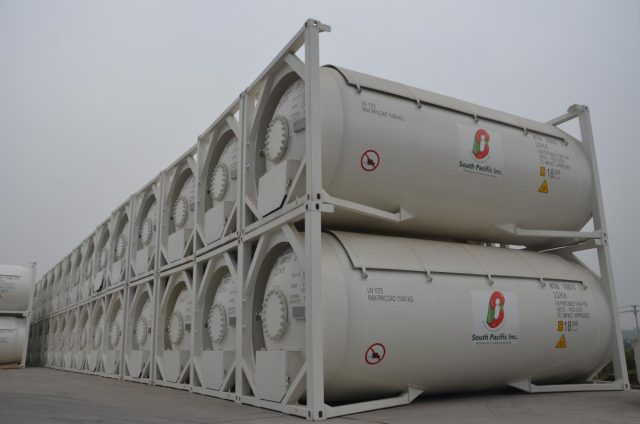

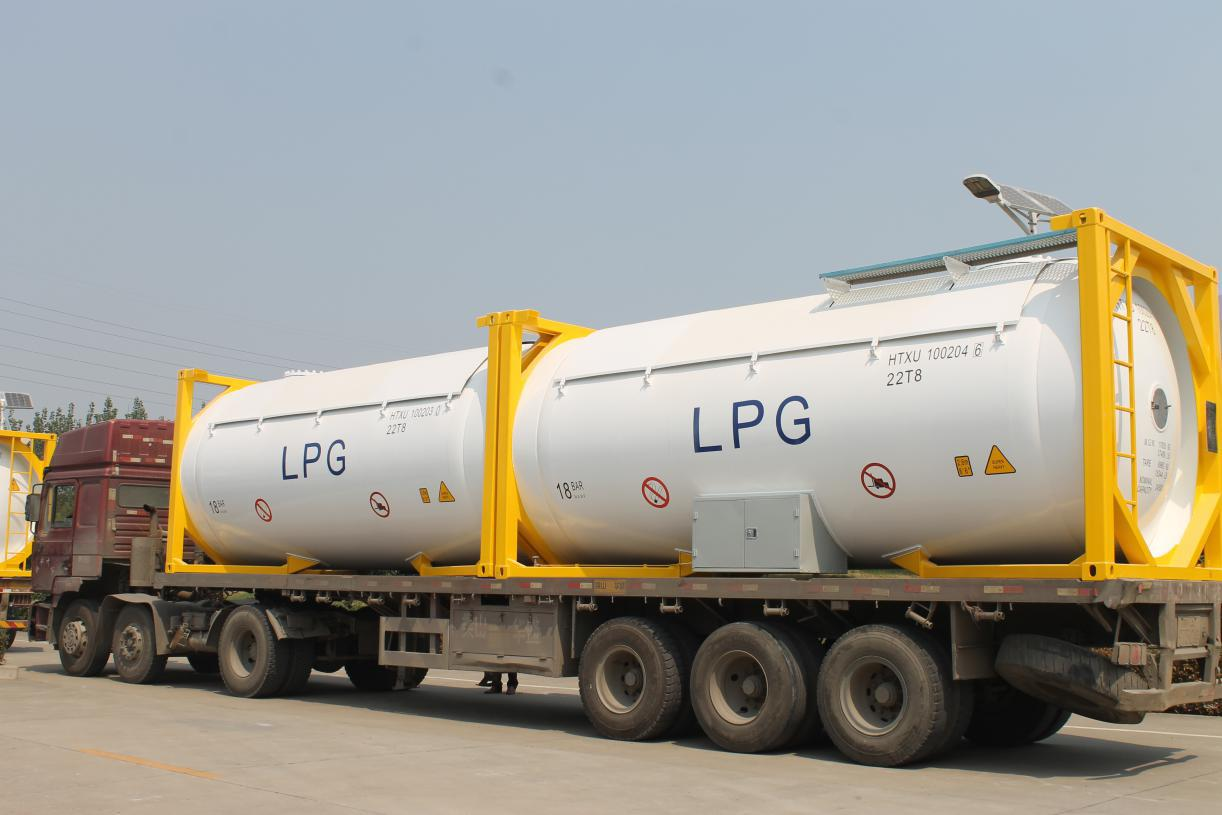

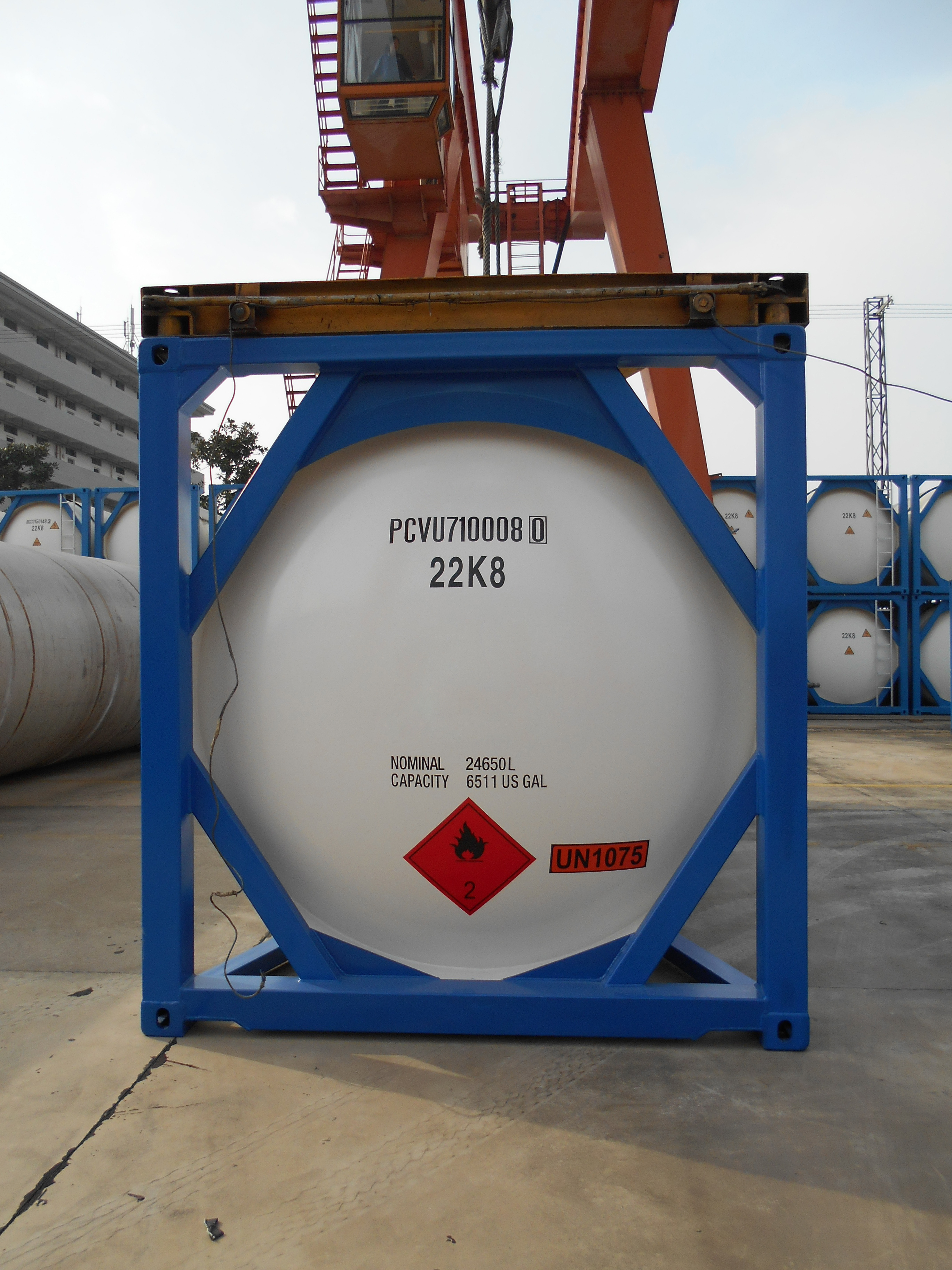

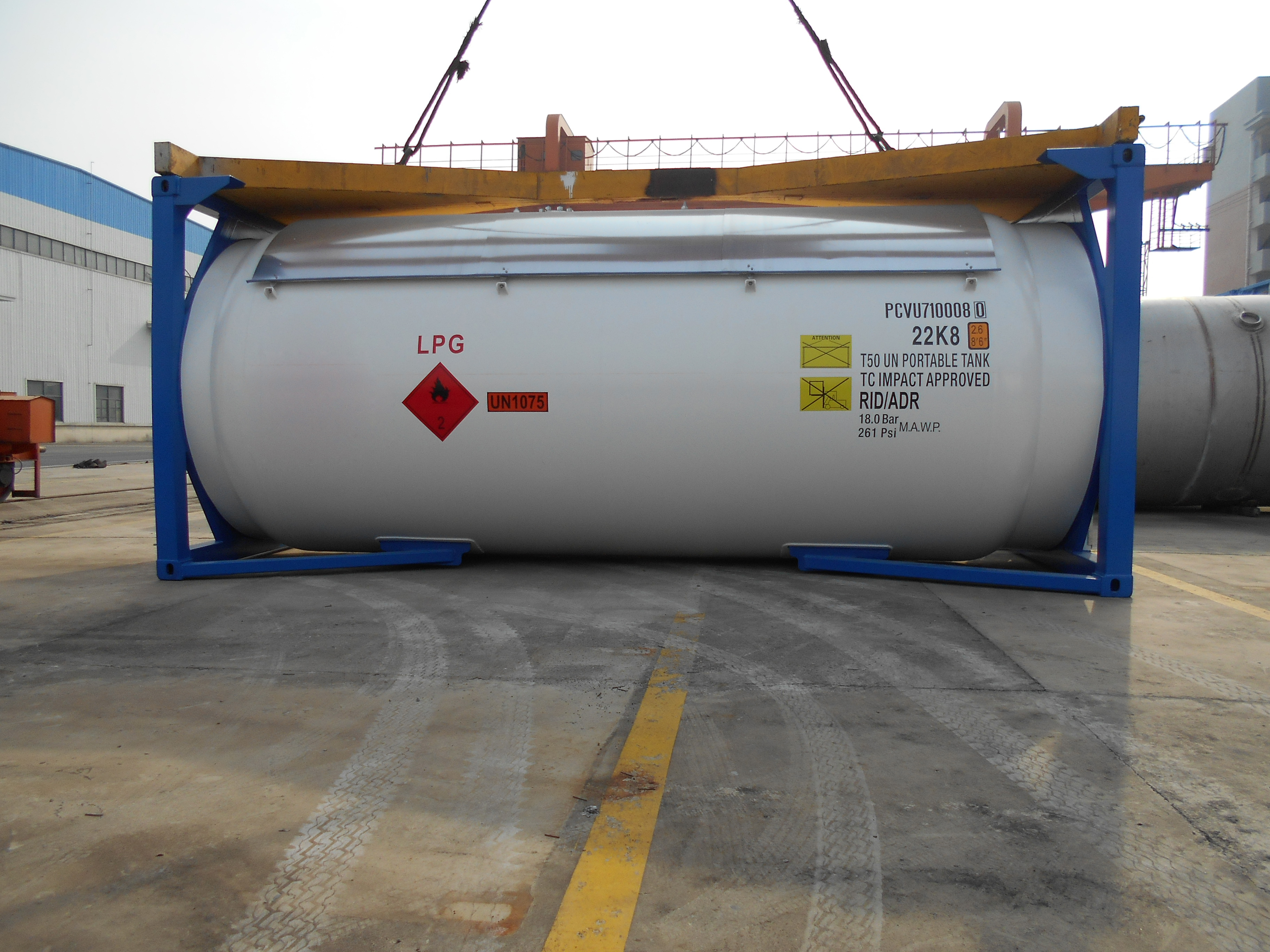

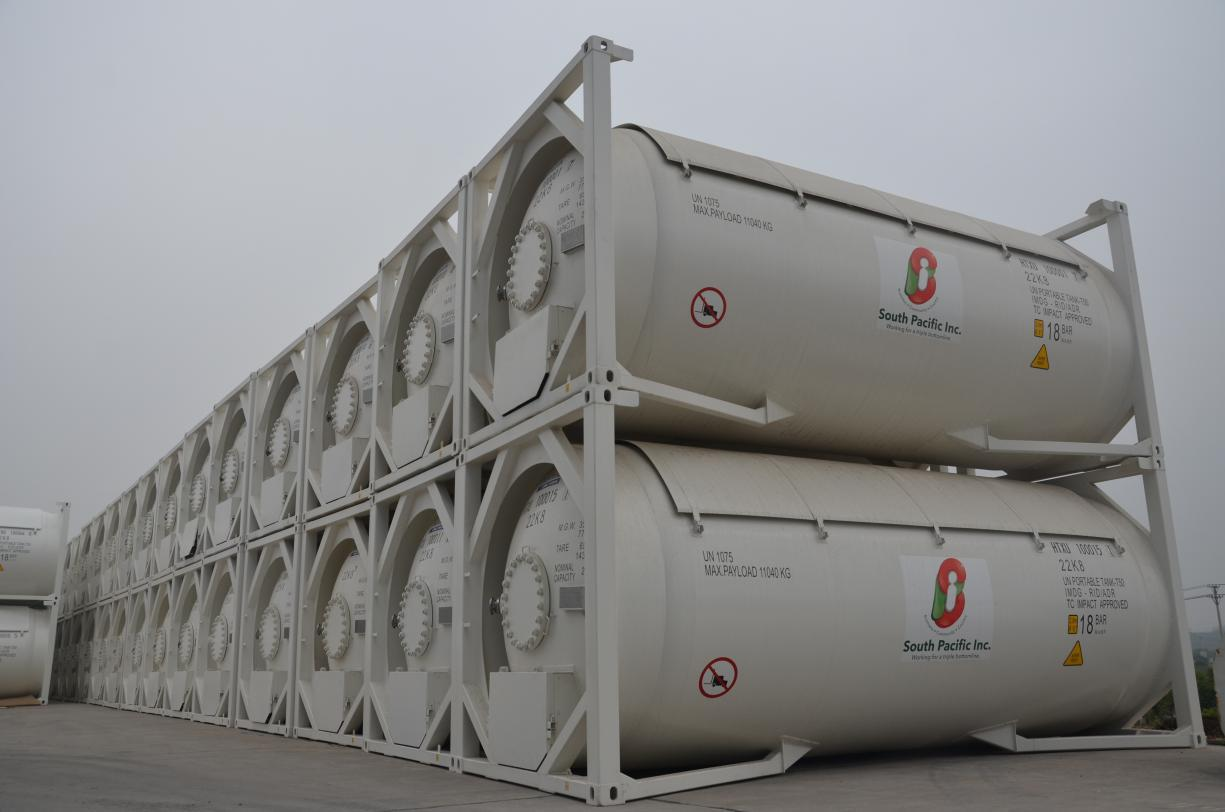

LPG Tank Container
Parameter Category Specifications
Model & Size 20 ft standard tank container (mainstream), 40 ft customized tank container, compliant with international container transport standards
Water Capacity 20 ft: 24–26.5 m³; 40 ft: 48–53 m³ (adjustable for different media and requirements)
Design Pressure 16.1 bar (for LPG); can be increased for other media in accordance with pressure vessel codes
Working Pressure 16 bar (for LPG); 5–19.5 bar for anhydrous ammonia, propylene and other chemical media
Tank Material Q345R / 16MnDR carbon steel for pressure vessels, low-temperature resistant, high-pressure resistant, integral heat treatment for stress relief
Design Temperature -40℃ ~ 50℃, suitable for global transportation and storage in different climate zones
Tare Weight 20 ft: approx. 4800–5200 kg; 40 ft: approx. 8500–9200 kg, lightweight structural design
Safety Equipment Safety valve, emergency shut-off valve, level gauge, pressure gauge, baffle plate, electrostatic grounding device, rupture disc
Anti-Corrosion Treatment Sandblasting Sa2.5 + epoxy zinc-rich primer + weather-resistant topcoat; 3PE enhanced anti-corrosion / salt-spray coating optional
Applicable Media Liquefied Petroleum Gas (LPG), propane, butane, anhydrous ammonia, propylene and other liquefied chemical media
Transport Compatibility Compatible with road, rail, sea and intermodal transport, in line with international container handling standards
LPG Tank Container
Parameter Category Specifications
Model & Size 20 ft standard tank container (mainstream), 40 ft customized tank container, compliant with international container transport standards
Water Capacity 20 ft: 24–26.5 m³; 40 ft: 48–53 m³ (adjustable for different media and requirements)
Design Pressure 16.1 bar (for LPG); can be increased for other media in accordance with pressure vessel codes
Working Pressure 16 bar (for LPG); 5–19.5 bar for anhydrous ammonia, propylene and other chemical media
Tank Material Q345R / 16MnDR carbon steel for pressure vessels, low-temperature resistant, high-pressure resistant, integral heat treatment for stress relief
Design Temperature -40℃ ~ 50℃, suitable for global transportation and storage in different climate zones
Tare Weight 20 ft: approx. 4800–5200 kg; 40 ft: approx. 8500–9200 kg, lightweight structural design
Safety Equipment Safety valve, emergency shut-off valve, level gauge, pressure gauge, baffle plate, electrostatic grounding device, rupture disc
Anti-Corrosion Treatment Sandblasting Sa2.5 + epoxy zinc-rich primer + weather-resistant topcoat; 3PE enhanced anti-corrosion / salt-spray coating optional
Applicable Media Liquefied Petroleum Gas (LPG), propane, butane, anhydrous ammonia, propylene and other liquefied chemical media
Transport Compatibility Compatible with road, rail, sea and intermodal transport, in line with international container handling standards
- Full Compliance & Certification: Strictly conform to PED 2014/68/EU, ADR, IMDG, EN 13445. CE certification and TÜV/DNV third-party inspection reports are available, meeting EU road/marine dangerous goods transport regulations and ready for market access.
- Safety & Environmental Protection: Equipped with ATEX-certified safety accessories; optimized baffle design improves transport stability; leak‑tight tank meets EU VOC emission requirements; vapor recovery port optional, in line with carbon reduction trends.
- Intermodal Compatibility: Fully integrated with European container transport network, seamlessly connecting road, rail and inland waterway transport, satisfying flexible inland distributed energy distribution.
North American Market
- Strong Standard Matching: Comply with ASME Section VIII, DOT 406, NFPA 58; U‑stamp and TC certification available, suitable for US and Canadian dangerous goods transport and pressure vessel regulations, ready for direct market access.
- Modular Adaptation: Mainly 20 ft standard version, suitable for distributed LPG supply (farms, remote mining areas, small industrial & commercial users); supports skid‑mounted combination, easy handling and fast deployment.
Latin American Market
- Cost‑effective & Weather‑resistant: Competitive pricing while meeting core ASME/DOT standards, suitable for infrastructure budgets; enhanced UV‑resistant and salt‑spray resistant coatings adapt to tropical/subtropical humid and coastal environments.
- Localized Service: Spanish/Portuguese technical documents and operation manuals provided; on‑site installation and O&M training available; key parts compatible with local procurement systems.
- Climate‑specific Adaptation: High‑weatherability anti‑corrosion system (epoxy zinc-rich + fluorocarbon topcoat) resists high temperature, humidity, coastal salt spray and rainforest corrosion, reducing equipment wear and extending maintenance intervals.
- Small Volume & High Flexibility: Dominated by 20 ft standard version, suitable for small‑scale LPG distribution networks, meeting small‑batch, high‑frequency delivery for urban civil, rural industrial & commercial and small logistics fleets, compatible with short‑haul inland waterway and road transport.
- Delivery & Cost Advantage: Standardized mass production with short lead time and batch customization; much lower price than European and American brands while meeting IMDG/ADR standards, with outstanding cost‑performance.
- Extreme Environment Resistance: Enhanced high‑temperature resistant material and coating, stable operation above 50℃ to avoid LPG overpressure; upgraded sealing structure against sandstorms and coastal salt spray, suitable for desert/coastal transport.
- Regional Standard Compliance: Meet SASO (Saudi Arabia), ESMA (UAE), GSO Gulf standards; full set of regional certifications and test reports provided, compatible with local dangerous goods transport regulations.
- Low Maintenance & Long Service Life: Anti‑corrosion layer + optional cathodic protection system resist desert alkaline soil and harsh atmospheric corrosion, with low later maintenance cost.
- Cost‑effective & Highly Durable: Significant price advantage while meeting ISO 11439, ASME and basic international standards; reinforced tank structure with strong impact and bump resistance, suitable for
