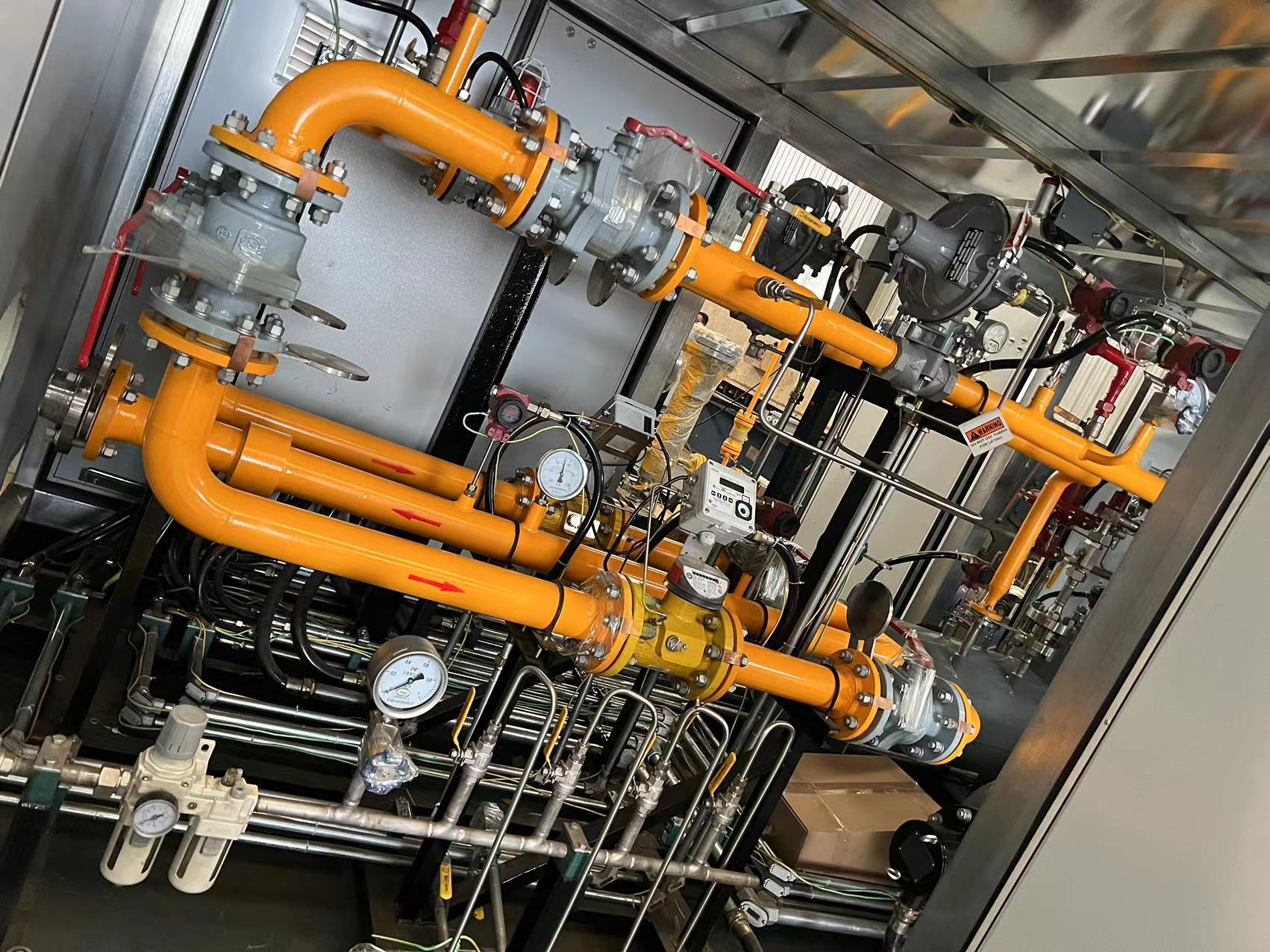

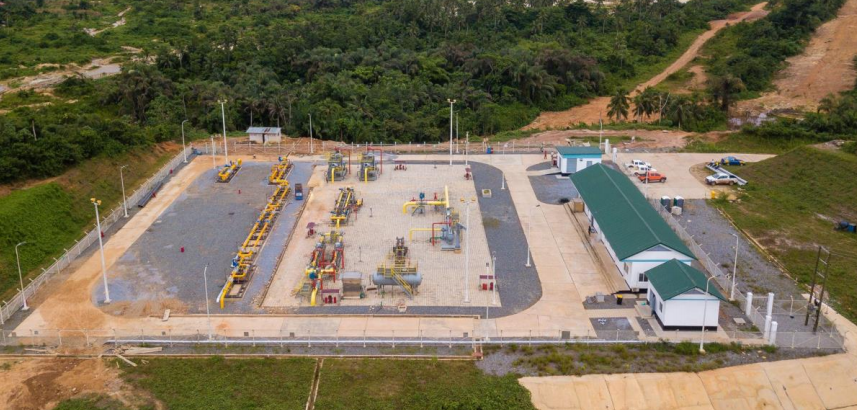

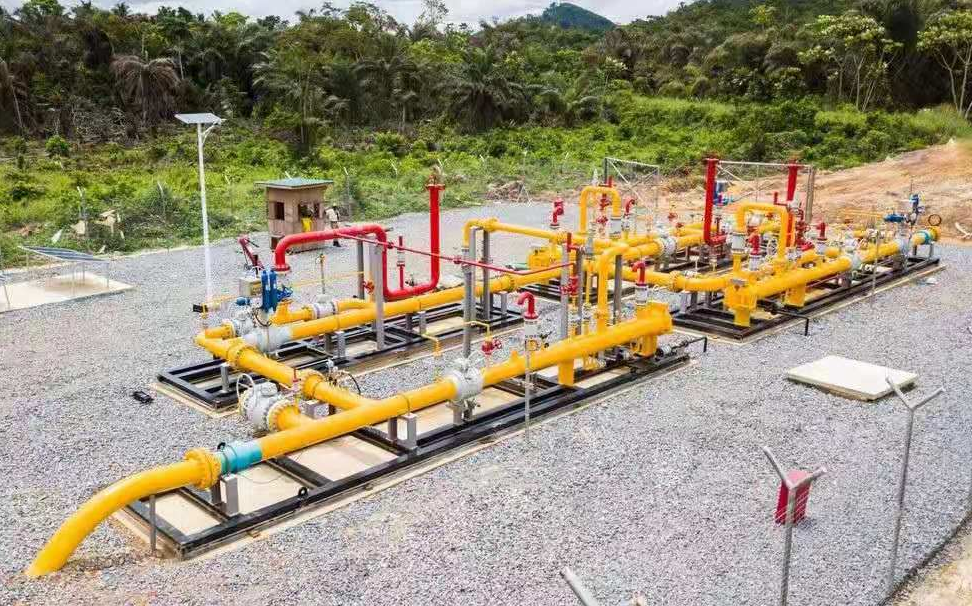

Gas Pressure Reduction Skid

Gas Pressure Reduction Skid

1. Core Basic Parameters

Item Technical Specification

Inlet Pressure 0.2 ~ 10.0 MPa (ultra-high pressure customizable)

Outlet Pressure 0.05 ~ 4.0 MPa (precision multi-stage regulation)

Pressure Regulation Accuracy AC1 ~ AC5 (selectable per demand)

Flow Range 100 ~ 150,000 Nm³/h

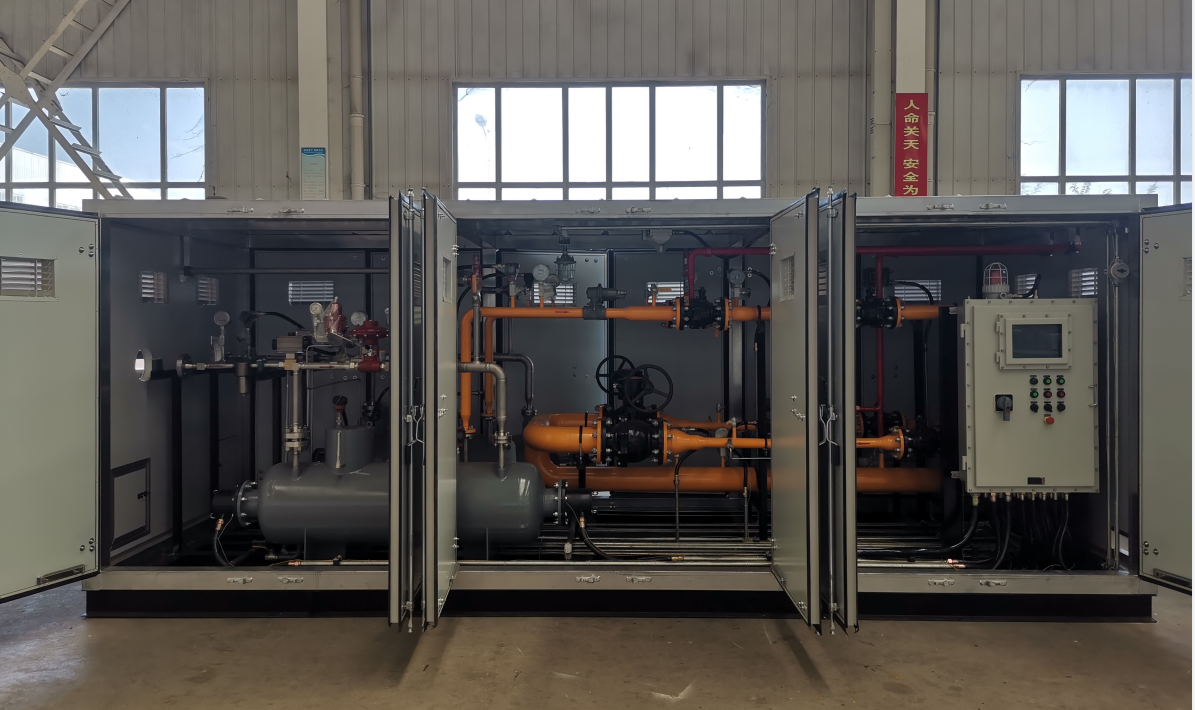

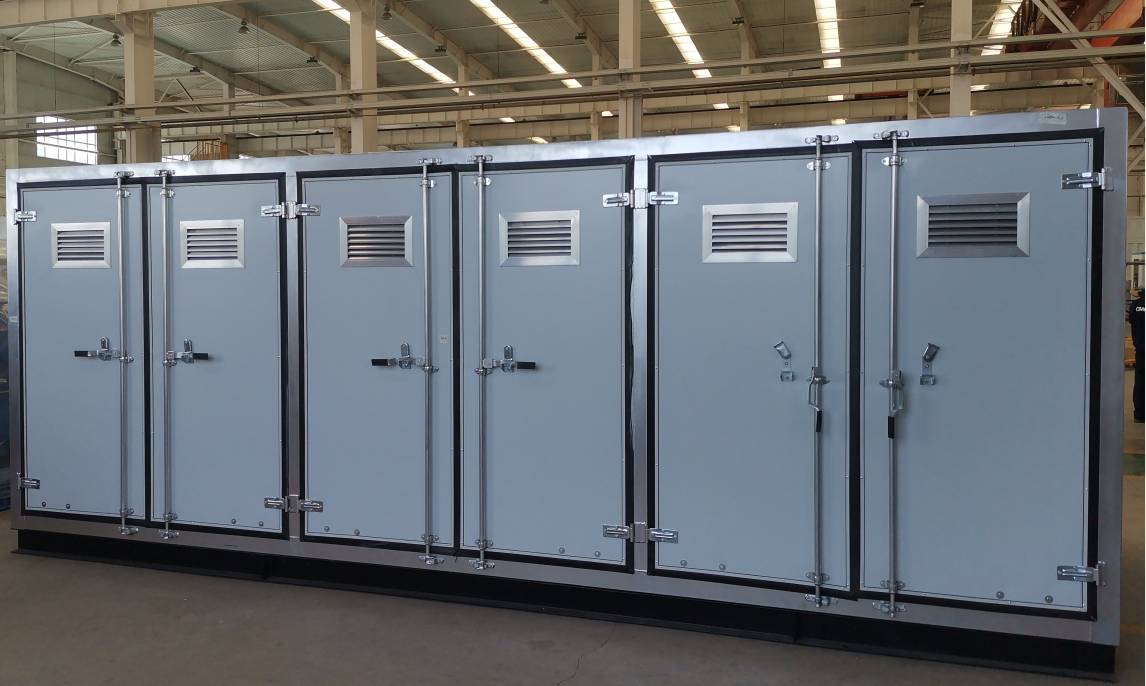

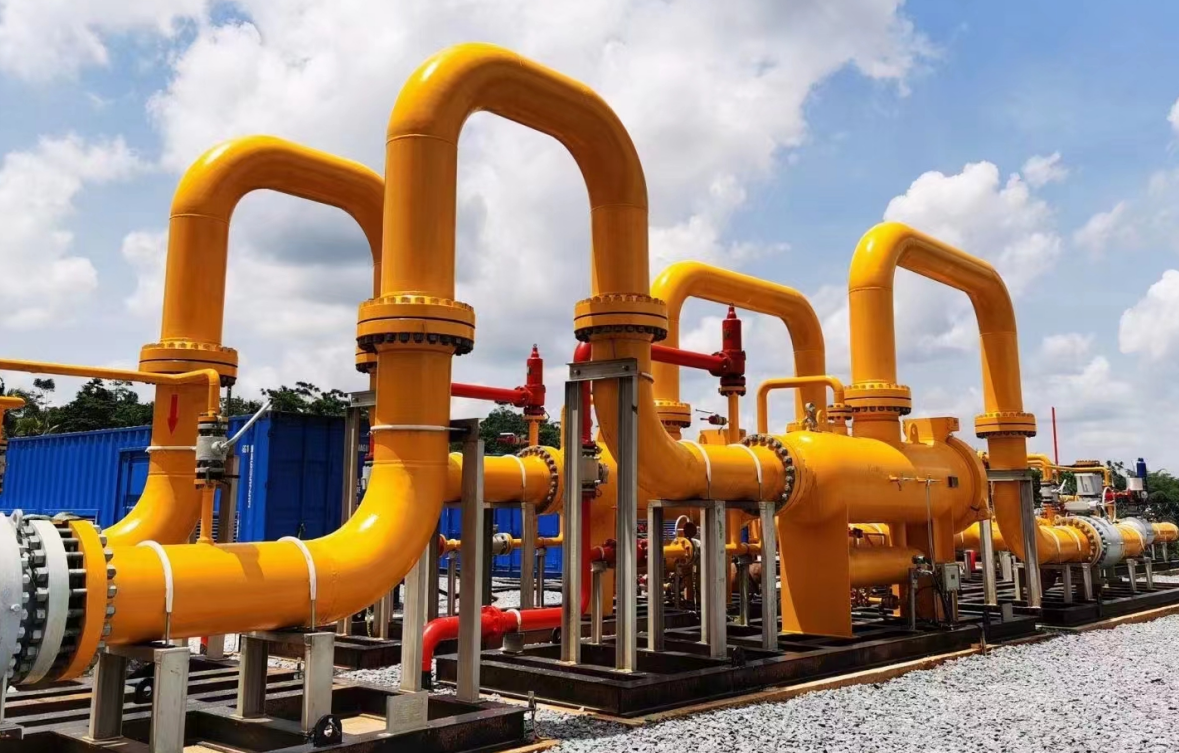

Structure Skid-mounted integrated (closed cabinet / open-air type)

Protection Level IP54 ~ IP65

Explosion-proof Grade dIIBT4 (for Zone 1 & 2 hazardous areas)

Operating Temperature -40℃ ~ 60℃

Applicable Media Natural gas, coalbed methane, LPG and other non-corrosive gases

Functional Modules Filtration, pressure reduction, metering, heating, odorization, safety shut-off, remote control

1. Core Product Advantages

1. Skid-mounted Integration for Fast Commissioning

- Prefabricated in factory: fully assembled, tested and debugged before delivery.

- On-site installation only requires pipeline and power connection; can be put into use within 72 hours.

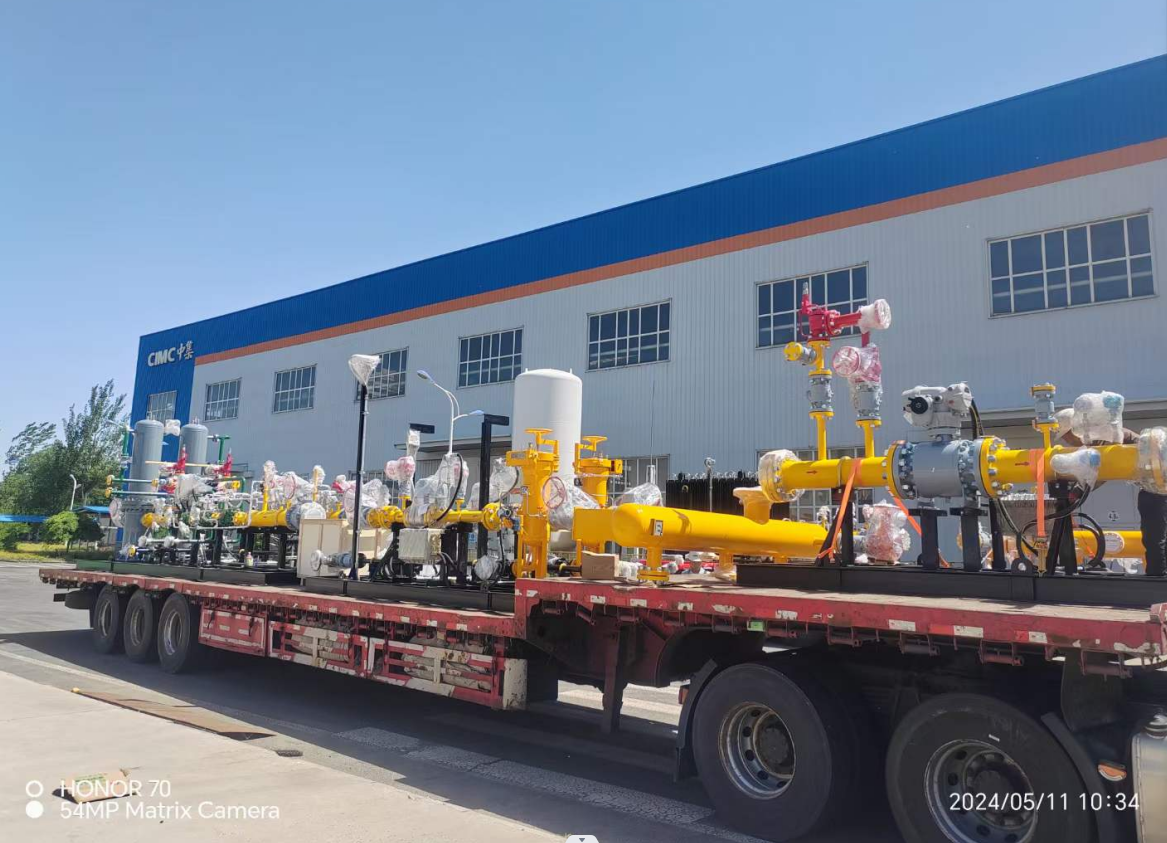

- Modular design for easy transport to mountainous and remote areas.

- Compact structure: saves over 40% space compared with conventional systems.

2. Full-Process One-Stop Solution

- Purification & Filtration: High-efficiency filters remove impurities, water and condensate.

- Multi-stage Reduction: 1/2/3-stage regulation, single/dual/multi-path redundant design.

- Precise Metering: Turbine, ultrasonic, or orifice flow meters available.

- Quadruple Safety Protection: overpressure shut-off, safety relief, pressure monitoring, gas leakage alarm.

- Intelligent Expansion: odorization, heating, RTU remote control, SCADA compatible.

3. High-Reliability Design for Harsh Environments

- Weather and corrosion resistant, suitable for coastal and chemical zones.

- Explosion-proof electrical components for gas station safety standards.

- Convenient maintenance: online service available without shutdown.

4. Customizable & Intelligent

- Flexible configuration of stages, metering, heating and odorization.

- Unattended operation via remote monitoring platform and APP.

- Reserved interfaces for IoT and big data for smart gas upgrade.

1. Why Choose Hebei Junxin Pressure Reduction Skid?

1. Safety & Compliance: Certified for explosion protection and pressure piping.
2. Efficient Delivery: Short construction period and low overall cost.
3. Stable & Durable: High-quality components, low failure rate.
4. Fully Customizable: Personalized solutions for various working conditions.
5. Local Service: Direct factory supply, fast commissioning and 7×24 technical support.

Hebei Junxin New Energy Gas Pressure Reduction Skid provides integrated, intelligent and highly reliable solutions for gas distribution.

It is the ideal choice for city gate stations, industrial parks and long-distance pipelines.
